Getting Started With Apache Pinot

If you are new to Apache Pinot and interested in learning more about it, you are reading the right post.

In this blog series, we will discuss Apache Pinot in detail so that you will learn the different components that make up a Pinot cluster. Apart from that, we will get some hands-on experience while running samples that ingest both real-time and batch data into Pinot and run analytical queries against them.

This is the introductory post of the series that talks about Apache Pinot concepts and components in detail. Towards the end, we will run an example to ingest a sample data set into Pinot and query it using the built-in query console.

What is Apache Pinot?

Pinot is a real-time distributed OLAP datastore, purpose-built to provide ultra low-latency analytics, even at extremely high throughput. It can ingest directly from streaming data sources – such as Apache Kafka and Amazon Kinesis – and make the events available for querying instantly. It can also ingest from batch data sources such as Hadoop HDFS, Amazon S3, Azure ADLS, and Google Cloud Storage.

Pinot is a distributed system that is made of multiple components. Each component plays a unique role in a Pinot cluster which is distributed across many servers. We’ll talk about them shortly.

Before we go any further, it is important to understand a few logical concepts that influence Pinot architecture.

Understanding the logical concepts

Let’s start with the storage model first.

Table

Thinking of the storage, a table is the logical component that represents a collection of related records. For example, we can store a collection of e-commerce orders in the orders table, sensors readings in the readings table.

As the user, the table is the only logical component that you’ll have to deal with directly.

Schema

Each table in Pinot is associated with a Schema. A schema defines what fields are present in the table along with the data types. As opposed to RDBMS schemas, multiple tables can be created in Pinot (real-time or batch) that inherit a single schema definition.

Segments

A table is expected to grow unlimited in size. Pinot is designed to store a single table across multiple servers. To make that easier, we break a table into multiple chunks called segments. Each segment holds a subset of the records belonging to a table.

A segment is the centerpiece in Pinot’s architecture which controls data storage, replication, and scaling. Segments are physical structures that have a defined location and an address inside a Pinot cluster.

Tenants

A table is associated with a tenant. All tables belonging to a particular logical namespace are grouped under a single tenant name and isolated from other tenants.

For example, marketing and engineering can be considered as two different tenants. Tables tagged with marketing will be isolated from engineering.

Figure 01 – Logical view of Pinot’s data model

Components of a Pinot cluster

As mentioned above, A Pinot cluster is made of multiple components, each playing a unique role while in operation.

Let’s explore them in detail.

Apache Zookeeper

Zookeeper is not a part of Pinot. But Pinot relies on Zookeeper for cluster management, metadata and configuration management, and coordination among different components.

Pinot Controller

You access a Pinot cluster through the Controller, which manages the cluster’s overall state and health. The Controller provides RESTful APIs to perform administrative tasks such as defining schemas and tables. Also, it comes with a UI to query data in Pinot. Controller works closely with Zookeeper for cluster coordination.

Pinot Broker

Brokers are the components that handle Pinot queries. They accept queries from clients and forward them to the right servers. They collect results from the servers and consolidate them into a single response to send it back to the client.

Pinot Server

Servers host the data segments and serve queries off the data they host. There are two types of servers — offline and real-time.

Offline servers typically host immutable segments. They ingest data from sources like HDFS and S3. Real-time servers ingest from streaming data sources like Kafka and Kinesis.

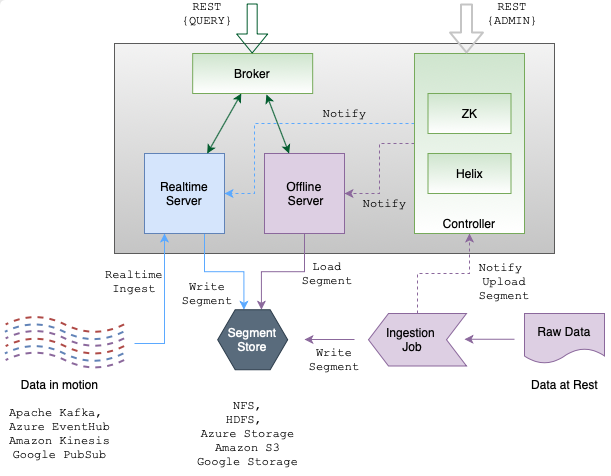

Figure 02 – Architecture of a Pinot cluster. You can see different components that make up the cluster.

Let’s see them in action

Now that we have learned each Pinot component in detail. Let’s create a local Pinot cluster with Docker to see them in action.

We will first build a single Docker container with the latest Pinot release, start all components inside that container, ingest some data, and query them using the query console.

Let’s get started.

Before we begin

Make sure that you have Docker installed on your machine.

Also, allocate sufficient resources to your Docker cluster for smooth performance of Pinot. Below is a sample configuration.

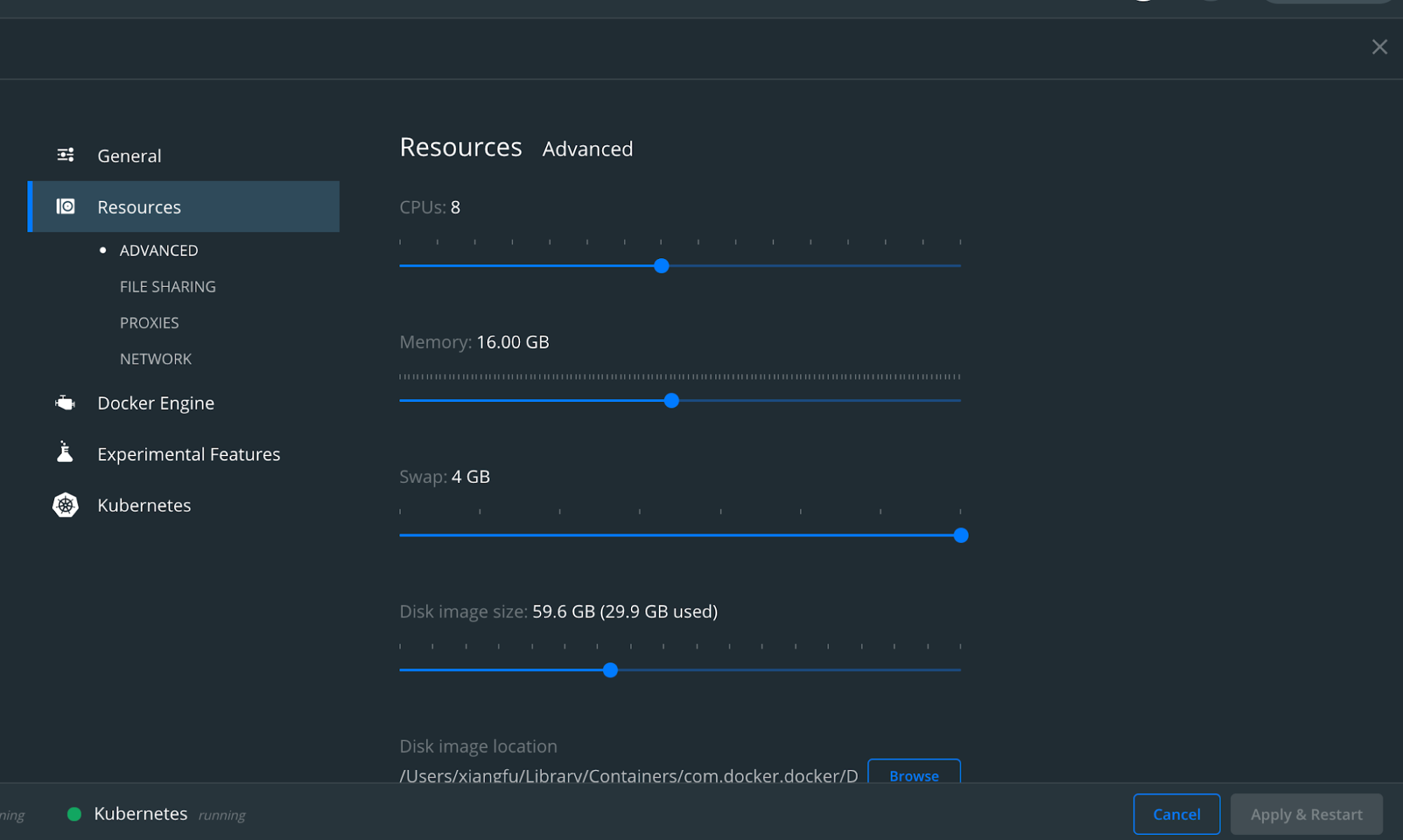

Figure 03 – Ensure your Docker installation has sufficient resources.

Create the Dockerfile

Apache Pinot distribution comes with a launcher script called ‘quick-start-batch’, which will spin up all the components inside a single JVM. In addition to that, it will automatically create a schema and a table for a sample baseball score data set so that you can query straightaway.

Batch quickstart is ideal if you want to scratch the surface of Pinot quickly. But, in this guide, we will set up a local Pinot cluster closer to a distributed cluster. We will start each component individually so that you will be familiar with their configurations and usage as well.

First, we will create a Docker container with the latest released Pinot distribution.

Use your favorite text editor to create a Dockerfile with the following content.

    FROM openjdk:11
    WORKDIR /app
    ENV PINOT_VERSION=0.8.0
    RUN wget https://downloads.apache.org/pinot/apache-pinot-$PINOT_VERSION/apache-pinot-$PINOT_VERSION-bin.tar.gz
    RUN tar -zxvf apache-pinot-$PINOT_VERSION-bin.tar.gz
    EXPOSE 9000


In the above file, we download the latest released version of Apache Pinot (0.8.0 as of this writing) into the container and extract it. Also, the port 9000 is exposed from the container because we need to access the query console that runs inside it.

Once the Dockerfile is in place, execute the following command in a terminal window to build a Docker image and tag it as gs-pinot. Make sure that you are in the same directory as the Dockerfile is located.

docker build . -t gs-pinot

The build process will take some time. Once it is completed, let’s spin up a new container with our newly created image as follows.

docker run -p 9000:9000 -it gs-pinot /bin/bash

Start Pinot components

Now that our container is up and running. Also, the last command above gave us a terminal session into the running container.

Let’s see what’s inside our working directory.

    root@06ec0a4e09c5:/app# ls
    apache-pinot-0.8.0-bin apache-pinot-0.8.0-bin.tar.gz


You can see the downloaded Pinot distributed as well as the extracted directory inside the /app directory. Let’s rename the extracted distribution as pinot.

mv apache-pinot-0.8.0-bin pinot

The pinot directory contains different directories including bin where you can find the launcher scripts to start the Pinot cluster. The examples directory contains several quickstart samples where you can play around with as well.

Inside the bin directory, you can find the pinot-admin.sh script, which you can use to start different Pinot components. If you execute it without any arguments, it will list all the available commands. In our example, we will only use the StartZookeeper, StartController, StartBroker, and StartController commands and skip the rest. Each command has the option to specify parameters including the port, etc, but we will stick to the default ports for this demo.

Let’s start with the first component, Apache Zookeeper, which serves as the metadata storage.

Go inside the bin directory on a terminal and execute the following.

./pinot-admin.sh StartZookeeper &

Note the & at the end of the command as we are running each command in the background. That will output the logs into the same terminal session.

Once we have Zookeeper up and running, we can start the controller next:

./pinot-admin.sh StartController &

When the Controller starts up, it will communicate with Zookeeper to register itself. Also, it will open port 9000 so that we can access its UI later.

Now, go ahead and start the rest of the components as follows.

    ./pinot-admin.sh StartBroker &
    ./pinot-admin.sh StartServer &


It is a bit hard to believe, but now we have a Pinot cluster up and running inside a single container

Pretty neat, isn’t it?

Now let’s go ahead and type this URL in a browser window to see the Pinot UI:

http://localhost:9000

In the first screen, the UI displays the instance count for each component. If you spin up more components, the UI will be updated. By clicking on the Query Console , you will be taken to the Pinot data explorer where you can interactively query Pinot tables.

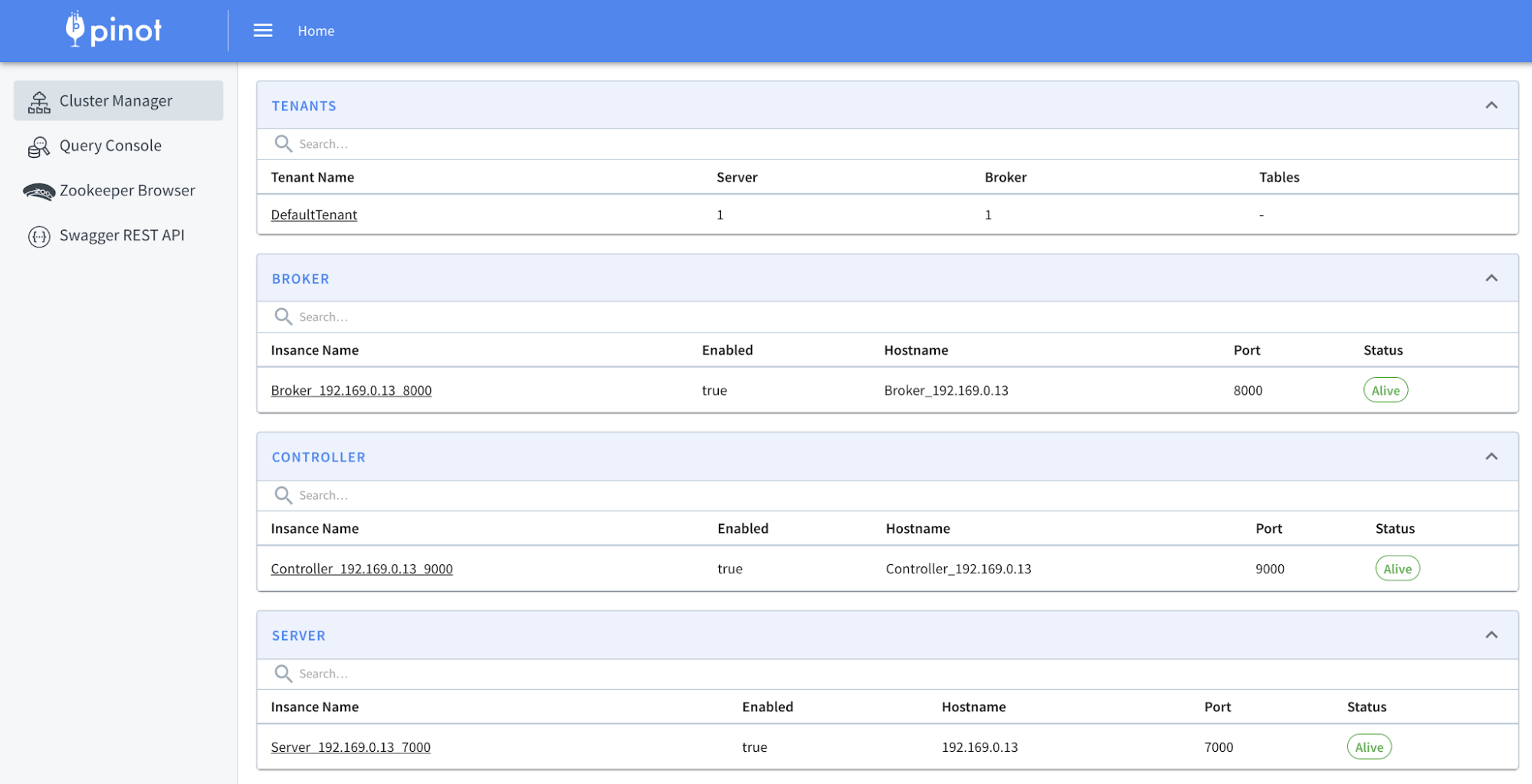

Figure 04 – Pinot data explorer runs at port 9000

You can find more information about the Pinot UI by visiting here.

Now we have a complete Pinot cluster. Let’s create a schema and table then ingest some data into that.

Create the baseballStats schema

In this section, we will ingest the baseball stats data set that you can find inside the examples/batch/baseballStats directory. This directory contains the required schema and table definition along with the raw data set.

Pinot requires you to create a schema and a table before ingesting raw data. That way, Pinot can keep track of the fields and data types of the data set to perform faster queries.

Let’s first create the schema.

Type in the following to open a new terminal session into our Pinot container. We will keep the previous session intact so that the cluster keeps running there.

First, run docker ps and get the container ID for gs-pinot to be used in the following command.

docker exec -it <CONTAINER_ID> /bin/bash

Let’s go ahead and install vim to make it easier to edit text.

apt-get install vim

Before creating the schema, let’s examine it first. Go inside the bin directory and open the schema definition with vim.

vim ../examples/batch/baseballStats/​​baseballStats_schema.json

That will bring in a JSON structurer like this:

            {
                "metricFieldSpecs": [
                  { "dataType": "INT", "name": "playerStint" },
                  { "dataType": "INT", "name": "numberOfGames" },
                  { "dataType": "INT", "name": "numberOfGamesAsBatter" },
                  { "dataType": "INT", "name": "AtBatting" },
                  { "dataType": "INT", "name": "runs" },
                  { "dataType": "INT", "name": "hits" },
                  { "dataType": "INT", "name": "doules" },
                  { "dataType": "INT", "name": "tripples" },
                  { "dataType": "INT", "name": "homeRuns" },
                  { "dataType": "INT", "name": "runsBattedIn" },
                  { "dataType": "INT", "name": "stolenBases" },
                  { "dataType": "INT", "name": "caughtStealing" },
                  { "dataType": "INT", "name": "baseOnBalls" },
                  { "dataType": "INT", "name": "strikeouts" },
                  { "dataType": "INT", "name": "intentionalWalks" },
                  { "dataType": "INT", "name": "hitsByPitch" },
                  { "dataType": "INT", "name": "sacrificeHits" },
                  { "dataType": "INT", "name": "sacrificeFlies" },
                  { "dataType": "INT", "name": "groundedIntoDoublePlays" },
                  { "dataType": "INT", "name": "G_old" }
                ],
                "dimensionFieldSpecs": [
                  { "dataType": "STRING", "name": "playerID" },
                  { "dataType": "INT", "name": "yearID" },
                  { "dataType": "STRING", "name": "teamID" },
                  { "dataType": "STRING", "name": "league" },
                  { "dataType": "STRING", "name": "playerName" }
                ],
                "schemaName": "baseballStats"
              }

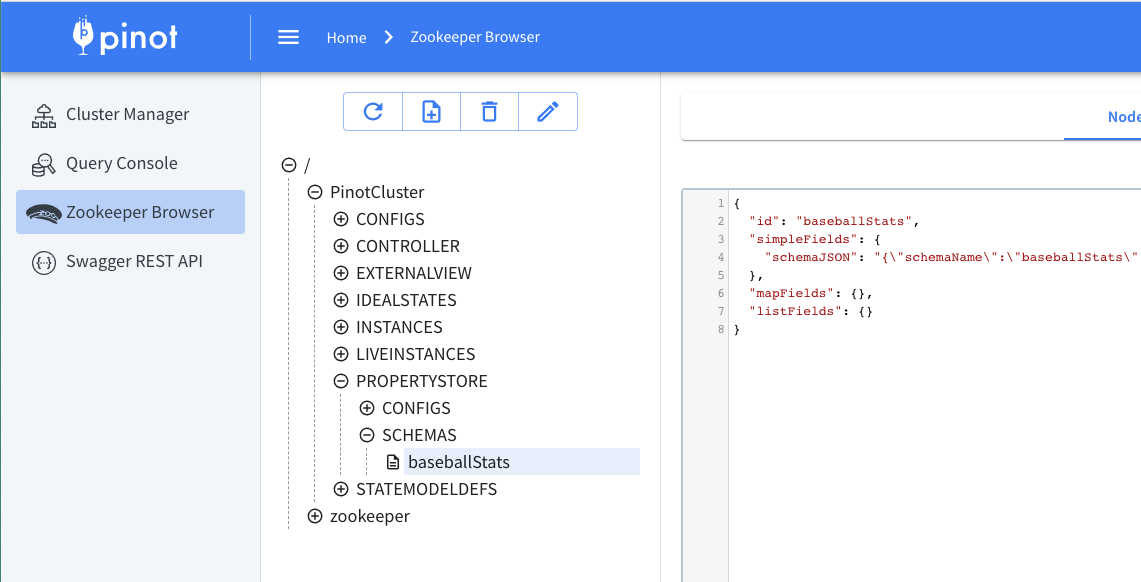

./pinot-admin.sh AddSchema \

-schemaFile ../examples/batch/baseballStats/​​baseballStats_schema.json -exec

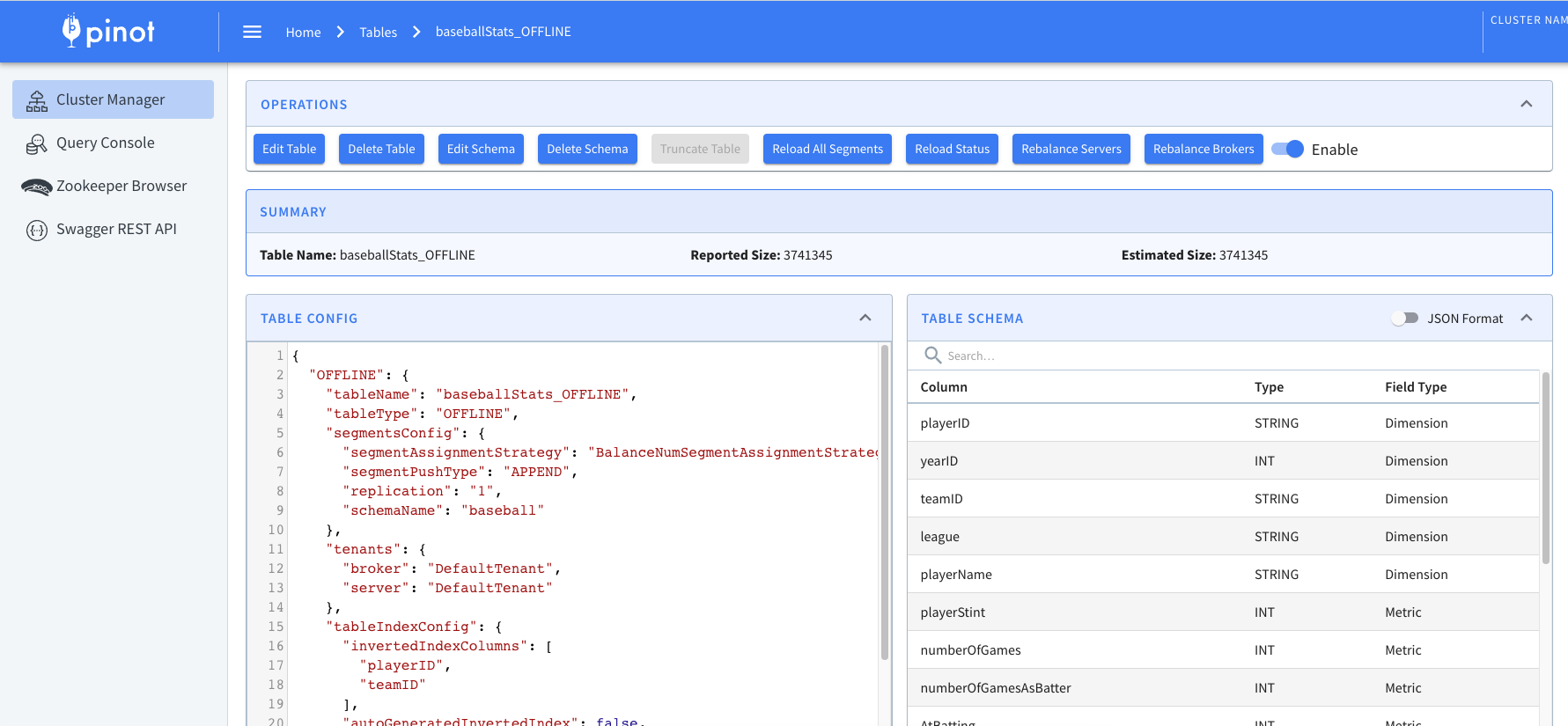

vim ../examples/batch/baseballStats/​​baseballStats_offline_table_config.json


        {
            "tableName":"baseballStats",
            "tableType":"OFFLINE",
            "segmentsConfig":{
                "segmentPushType":"APPEND",
                "segmentAssignmentStrategy":"BalanceNumSegmentAssignmentStrategy",
                "schemaName":"baseball",
                "replication":"1"
            },
            "tenants":{},
            "tableIndexConfig":{
                "loadMode":"HEAP",
                "invertedIndexColumns":[
                    "playerID",
                    "teamID"
                ]
            },
            "metadata":{
                "customConfigs":{}
            }
        }


    ./pinot-admin.sh AddTable \
    -tableConfigFile ../examples/batch/baseballStats/baseballStats_offline_table_config.json -exec


vim ../examples/batch/baseballStats/​​ingestionJobSpec.yaml

    inputDirURI: 'app/pinot/examples/batch/baseballStats/rawdata'
    outputDirURI: 'app/pinot/examples/batch/baseballStats/segments'


    ./pinot-admin.sh LaunchDataIngestionJob \
    -jobSpecFile /app/job.yml

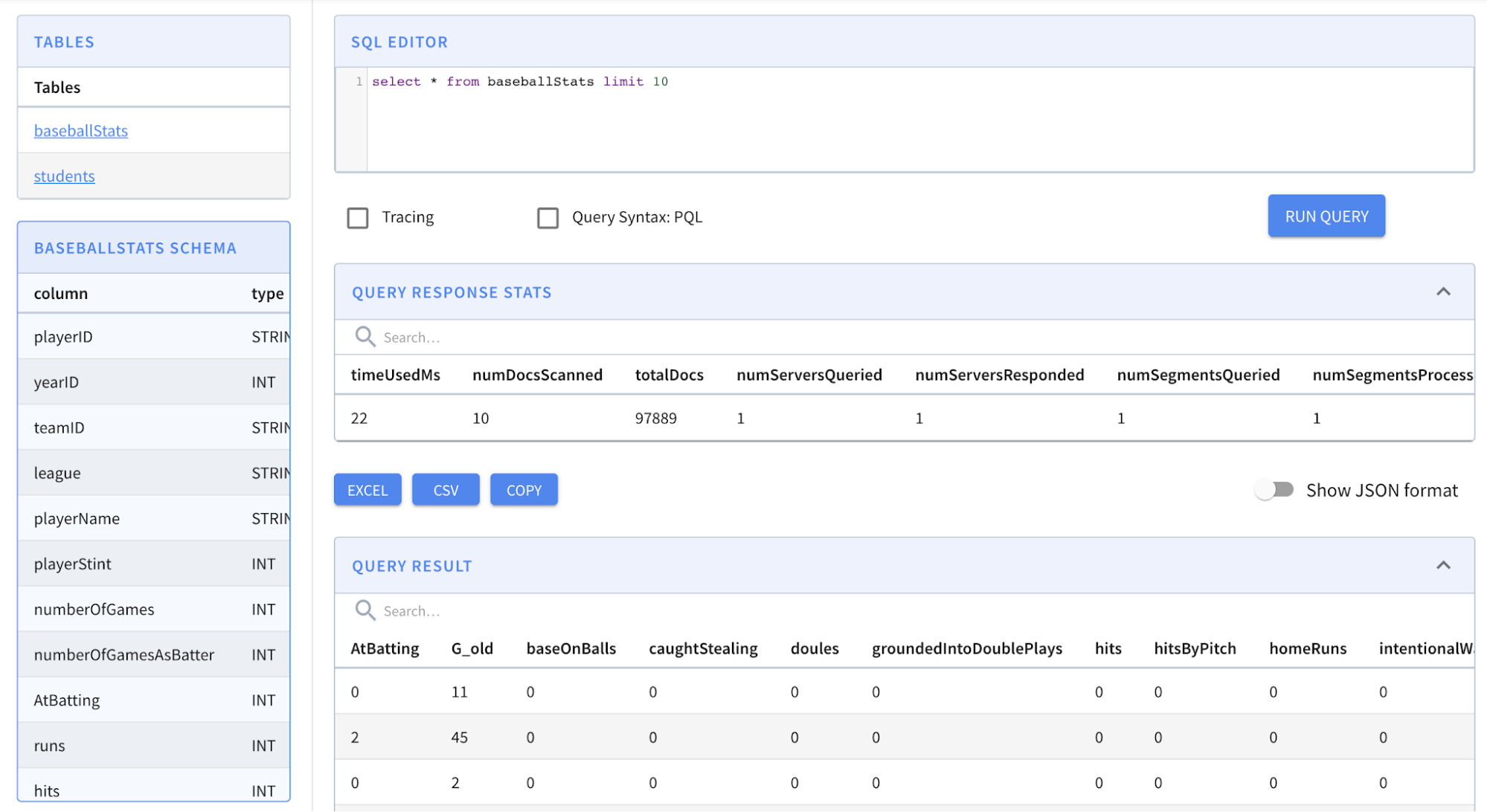

    SELECT teamID, sum(homeRuns)
    FROM baseballStats
    GROUP BY teamID
    ORDER BY sum(homeRuns) DESC
    LIMIT 10
